Smoothing within layers

Smoothing within layers can be advantageous for multiple reasons:

  • Increasing the CNR without loosing spatial information across cortical depths.
  • Visualization of striping pattern across columnar structures.
  • Avoiding leakage of physiological noise from CSF space into GM tissue.


History

I first heard about directional smoothing at the E-poster presentation from Jonathan Polimeni (2015) at ISMRM in Toronto. Based on what he showed there in surface space, I tried to implement a corresponding smoothing in voxel space for the following ISMRM (Huber et al. 2016). In the same year Anna Blazejewska (2016) implemented it in surface space in Freesurfer.

Usage of LAYNII program: LN_LAYER_SMOOTH

Required

There are two datasets required for LN_LAYER_SMOOTH:

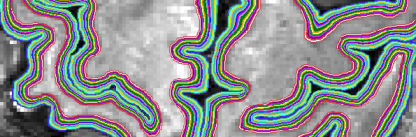

  1. Layer mask in voxel space. E.g. generated as described here. This file is a nii-volume dataset, where every voxel has the value of the cortical depth. There is a layer mask file example included in github.

    Example of layer file: It should be a nii file with integer values as layers. If it has non-intager values, the program will truncate it to integers.
  2. Activation map with the same dimensions as the layer file.
Example activation map that should be smoothed.

Getting software

The program LN_LAYER_SMOOTH can be downloaded from github LAYNII as follows:

 git clone https://github.com/layerfMRI/laynii

Compile it in the LAYNII folder with:

make LN_LAYER_SMOOTH

Executing LN_LAYER_SMOOTH

./LN_LAYER_SMOOTH -layer_file equi_dist_layers.nii -input activity_map.nii -FWHM 1.0 <span id="mce_SELREST_start" style="overflow:hidden;line-height:0;"></span>



Screenshot 2018-03-15 14.12.16.png
help from LN_LAYER_SMOOTH

Features

  • The output file name is smoothed.nii.
  • The argument -FWHM is given in mm, so it should be made sure that the nii header should are correct.
  • The layer-mask file should have positive values only. Negative values are ignored.
  • Per default, voxels that are not included in the layer mask are not smoothed. They are just copied to the new ‘smoothed*.nii’ file (e.g. see bottom left of the top figure).
  • The optional -mask option will set everything outside the layer mask to zero. The default is that this option is switched of.
  • Smoothing is done along the cortical ribbon with a Gaussian kernel.
  • Smoothing can be done in 2D and in 3D. The default is 3D. Use the optional “-twodim” option if you want to to 2D smoothing only. Note that the smoothing is done in units of mm not voxels. Hence, for lower slice resolution than in-plane resolution, the 3D-smoothing will be weaker across neighboring slices compared to neighboring voxels in-plane.
