Intensity projections in LAYNII

Maximum intensity projection and minimum intensity projection can be insightful for mapping of vessels in 3D-slabs. In this post, I describe the application of intensity projections with LAYNII.

Usage

The LAYNII program that performs the intensity projections is called: LN_INTPRO, which stands for Layer Nifti INTensity PROjection.

Its basic usage is:

LN_INTPRO -image file.nii -min -direction 3 -range 5

  • The -max-min option describes if its does a maximum intensity projection and minimum intensity projection.
  • The option -direction 1 defines along which dimension the intensity should be projected to; 1 stand for x, 2 stand for y, and 3 stands for slice direction.
  • The option-range it not mandatory and is defines the the range of neighbouring voxels included. The default is that the entire dimension is collapsed. The value 5 refers to integer number of voxels.

Examples

Here I am using a MEAN BOLD time series as a reference. The data used here are from the open Dataset on OpenNeuro and can also be downloaded here.

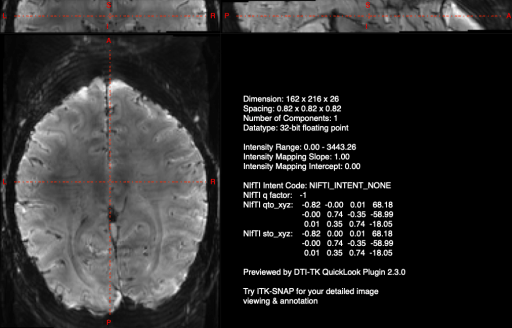

Screenshot 2019-02-05 17.27.04.png

Example 1:

In this example, the range of the minimum intensity projection is changed.

LN_INTPRO -image BOLD.Mean.nii -min -direction 3 -range 5
LN_INTPRO -image BOLD.Mean.nii -min -direction 3 -range 15

vinc_5_15
With larger range values, more individual vessel segments appear connected. However, many slices are collapsed on top of each other and are partly overlaying.

Example 2:

In this example, the direction of the intensity collapse is shown:

LN_INTPRO -image BOLD.Mean.nii -min -direction 1 -range 5
LN_INTPRO -image BOLD.Mean.nii -min -direction 2 -range 5
LN_INTPRO -image BOLD.Mean.nii -min -direction 3 -range 5

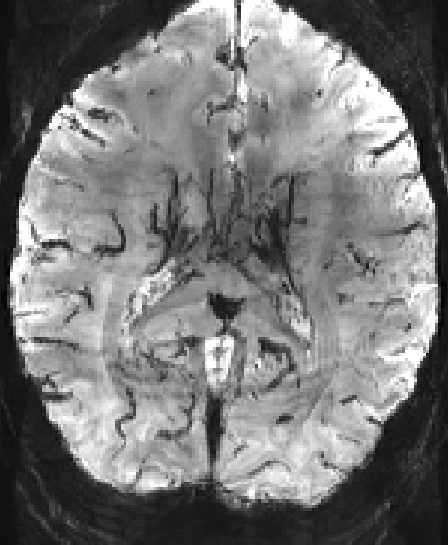

axial
axial projection: -direction 3
cormal
coronal projection: -direction 2
sagital
sagital projection: -direction 1

Acknowledgement:

This program is motivated comments from Jonathan Polimeni at ISMRM 2018 in Paris, that the intensity projection might be helpful to determine if VAICA results are really dominated by vessels. Eventually it was implemented to reproduce vessel maps shown in Kendrick Kay’s critical assessment paper.
